Vertical Rotary Parking System - High Quality Heavy Duty Parking Equipment

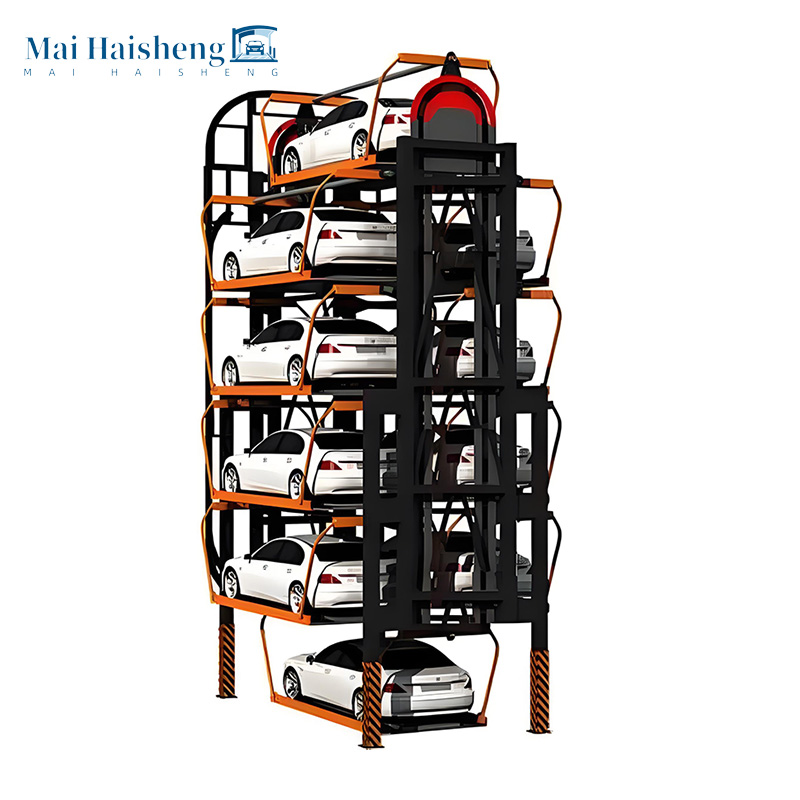

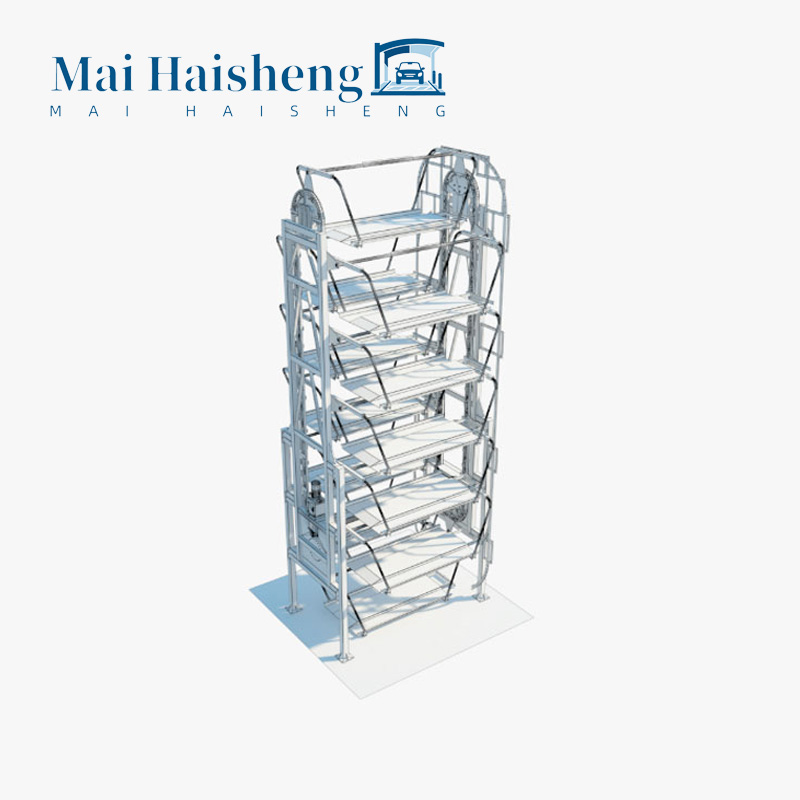

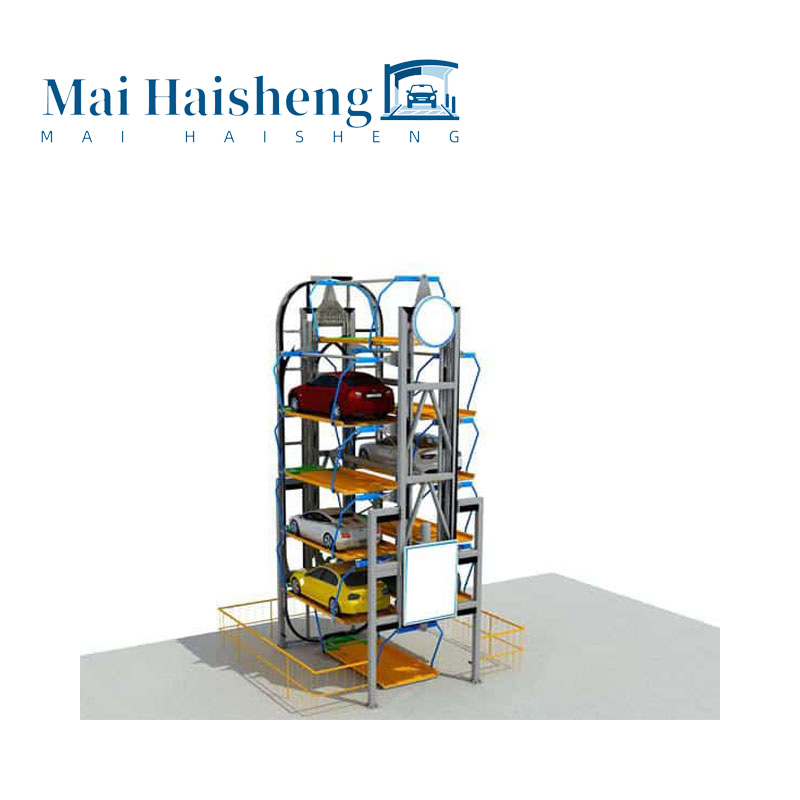

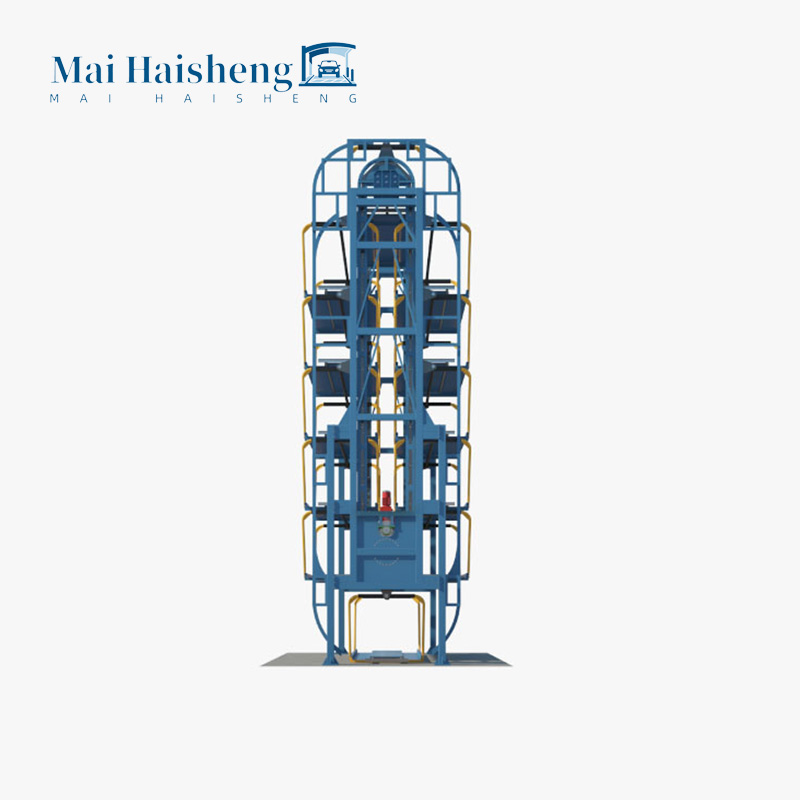

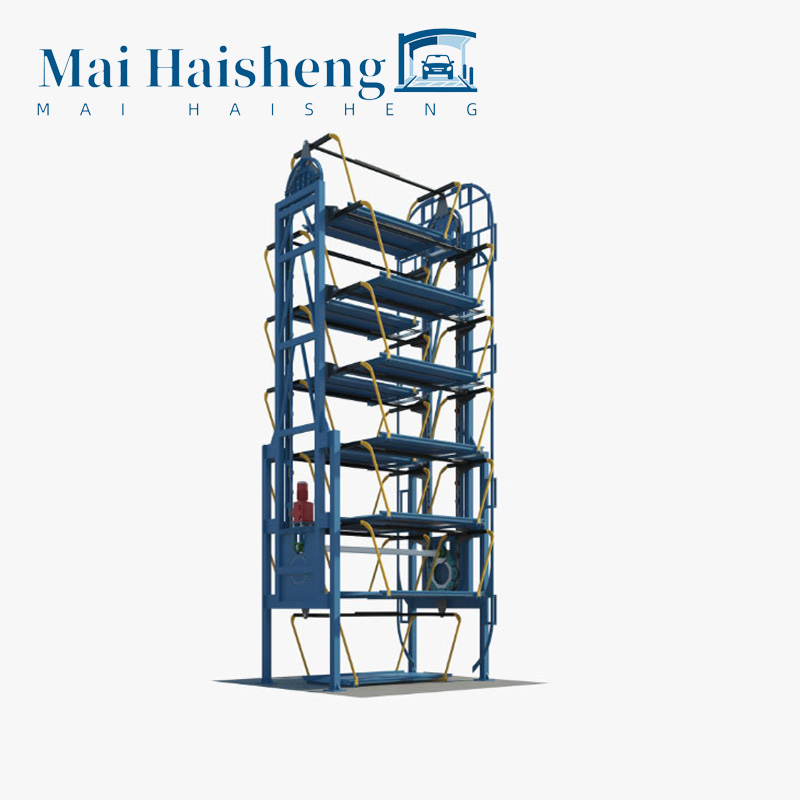

The Rotary Parking System is a vehicle storage facility that utilises vertical circular motion to achieve vehicle access and retrieval. Its operating principle involves a reduction motor driving a transmission mechanism. At regular intervals along the traction component—a chain—vehicle storage trays are installed. These trays move in a circular motion with the chain, thereby enabling vehicle storage and retrieval.
1. Space-saving: Constructing a seven-storey standard car park within 38 square metres (roughly two standard parking bays) accommodates up to 20 saloon cars.

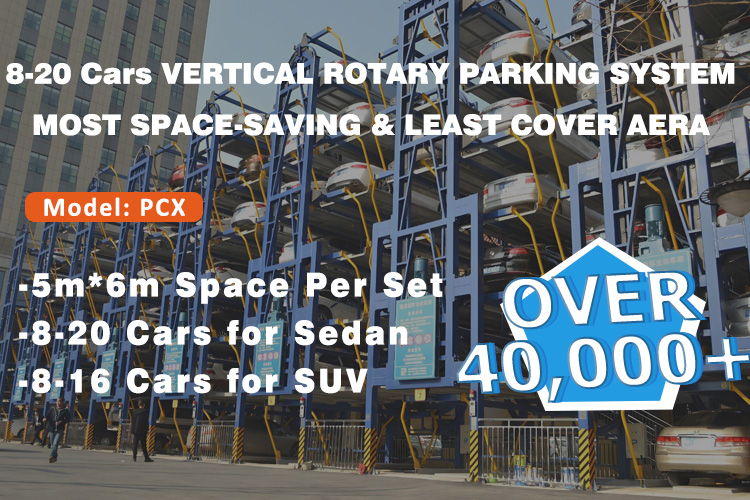

2. Flexibility: Requires minimal space, can be assembled individually or arranged in rows to form large garages.
3. Reliability: Features mature, stable mechanical systems with robust construction and low failure rates. Equipped with comprehensive locking and detection systems, incorporating adequate safety measures.
This equipment is suitable for use in confined spaces within residential estates or in public car parks such as those at hospitals and shopping centres.
|
Equipment Model |
PCX |
|
Number of Equipment Layers |
11 layers and below |
|
Vehicle capacity |
Common seven-layer equipment: 12 cars per set |
|
Vehicle Specifications |
5300x1900x1550 (Sedan)/ 5300x1900x2000 (SUV) |
|
Vehicle weight |
2000kg/2350kg |
|
Drive Method |
Meshing Sprocket + Fork-type Geneva Wheel |
|
Motor power(Kw) |
15-22 |
|
Lifting speed(m/min) |
4.4 |
|
Operation Method |
Button/Card Swipe/Face Recognition |
|
Power Supply |
Three-phase five-wire system AC 380V 50Hz |
