Vertical Puzzle Parking System - Automatic Commercial & Residential Solution

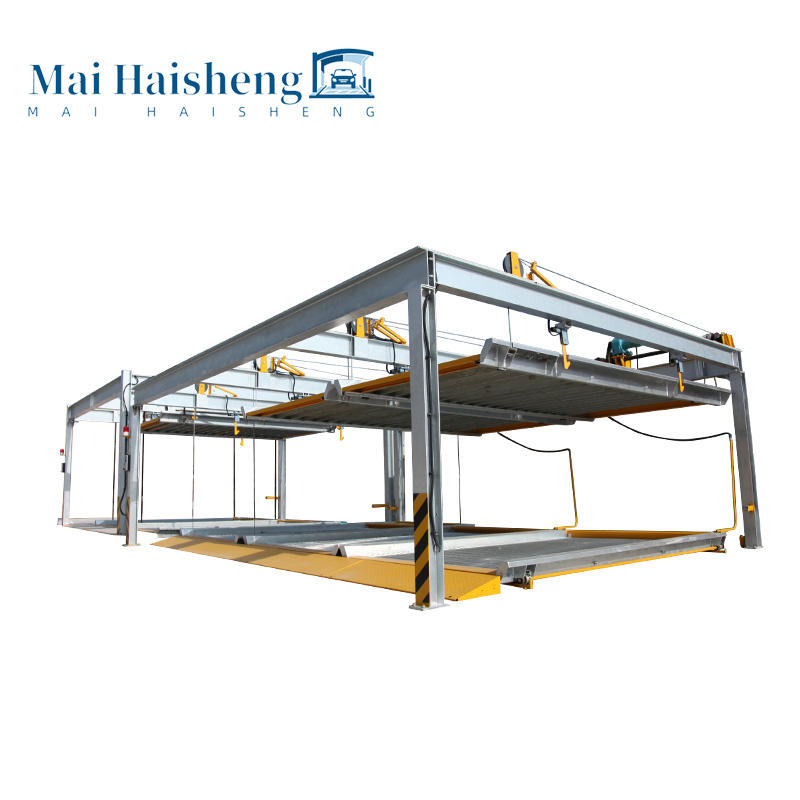

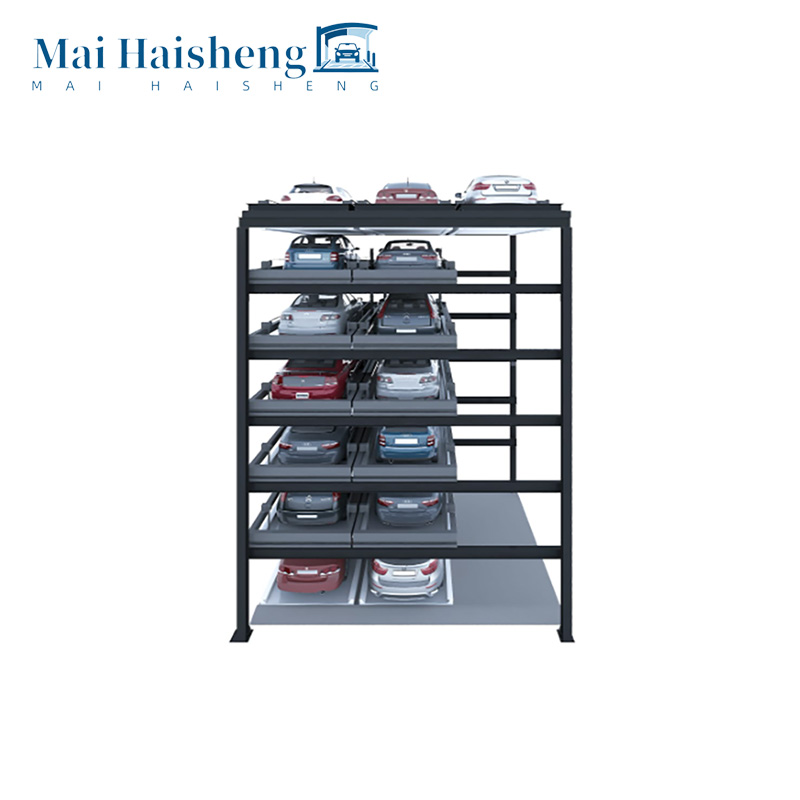

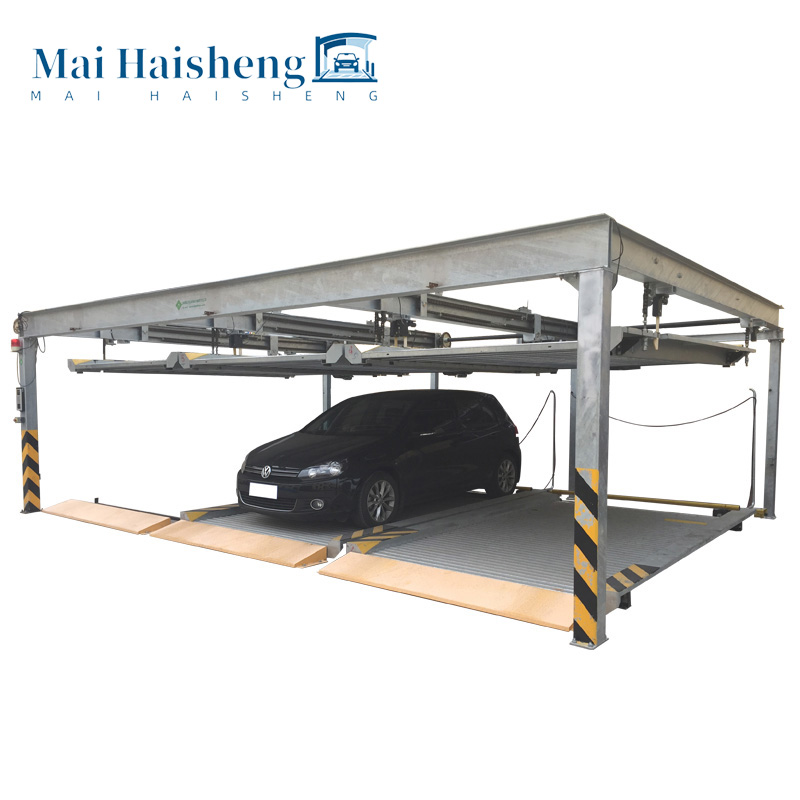

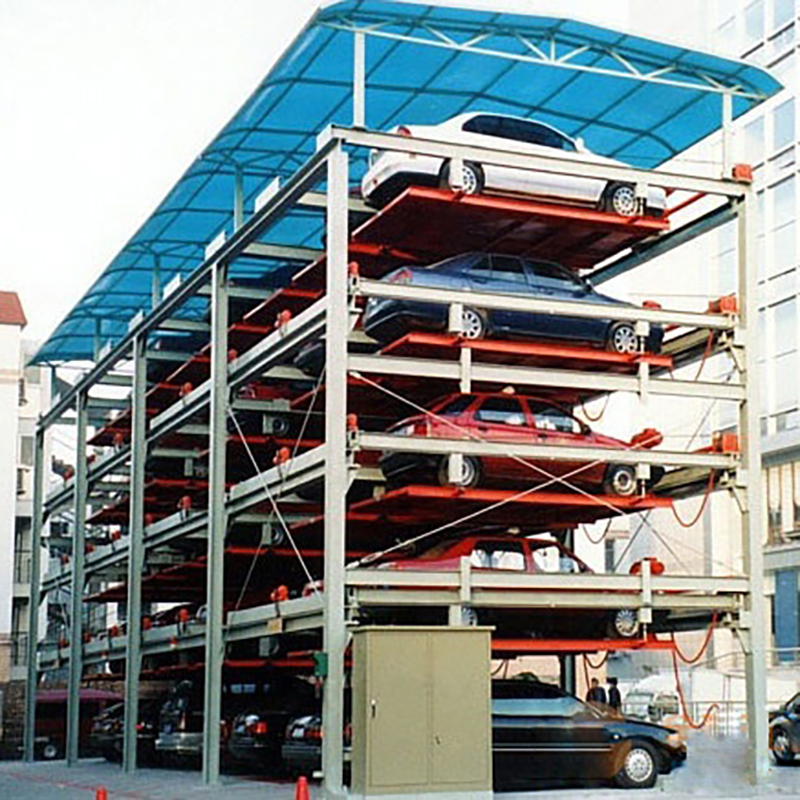

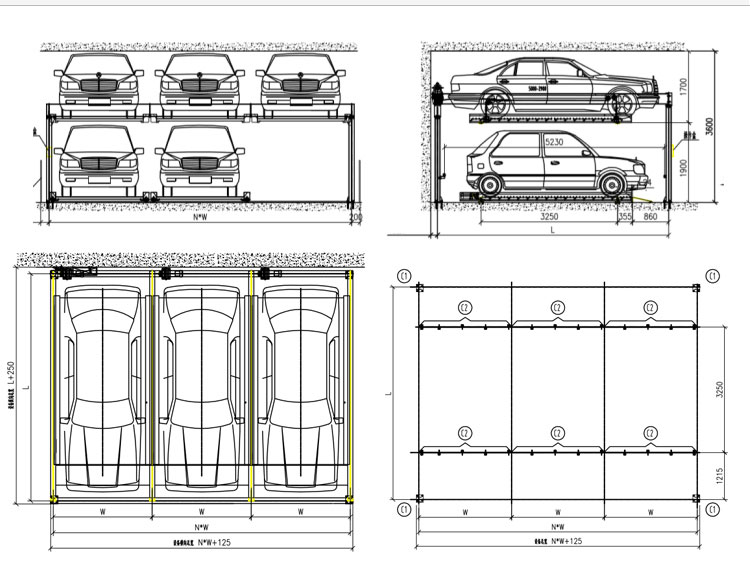

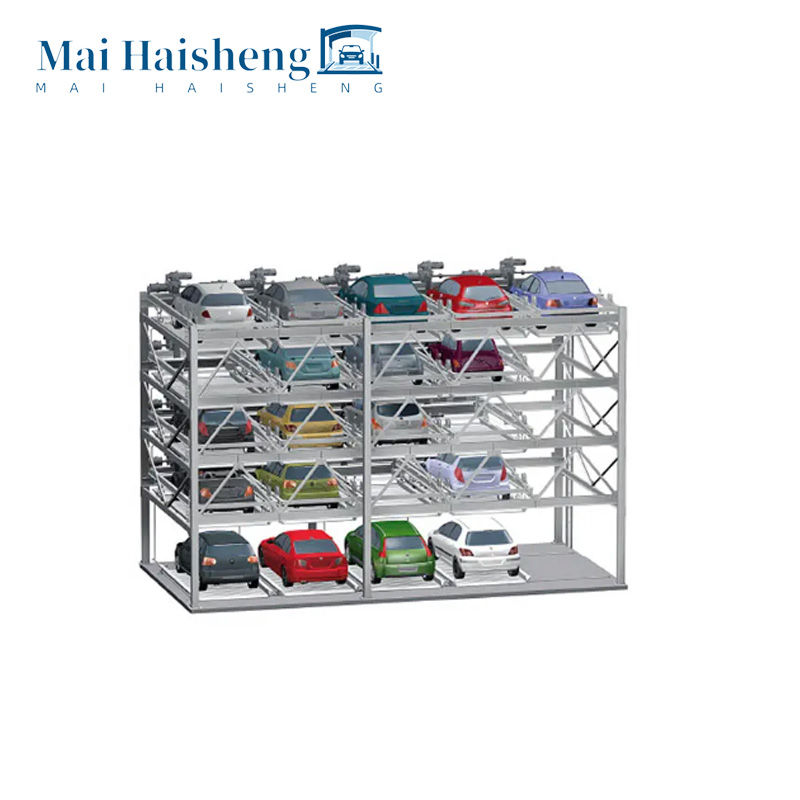

PSH is a semi-automatic parking system. The parking space selected is moved to the desired position by means of an automatic control system, and the parking spaces can be shifted vertically or horizontally. Entrance level platforms move horizontally and upper level platforms move vertically, with always one platform less at the entrance level. By swiping the card or input the code, the system automatically moves the platforms in the desired position. To collect a car parked on the upper level, the platforms at the entrance level will first move to one side to provide an empty space into which the required platform is lowered. The scale can be adjusted to suit requirements, accommodating buildings ranging from two to seven storeys, thereby increasing the number of parking spaces severalfold.
