Plane Moving Parking System - Fully Automated Space-Saving Solution

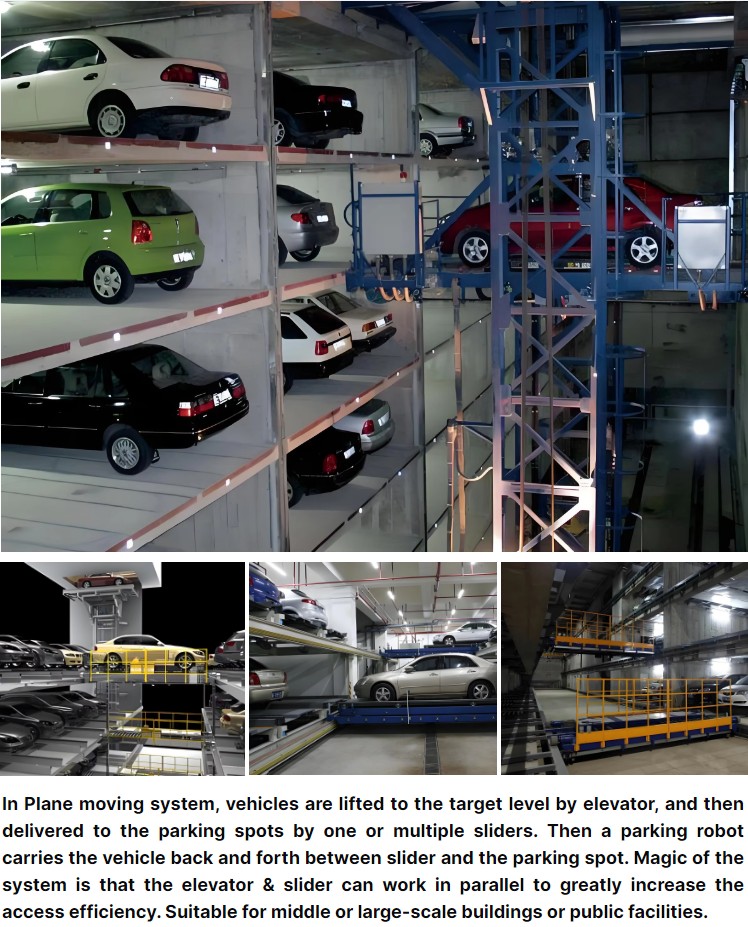

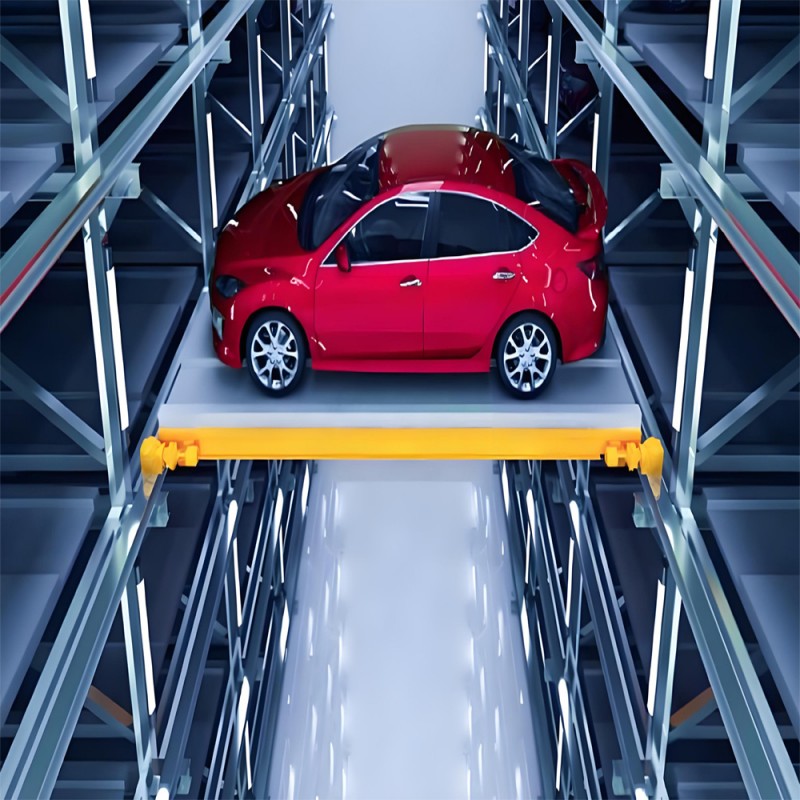

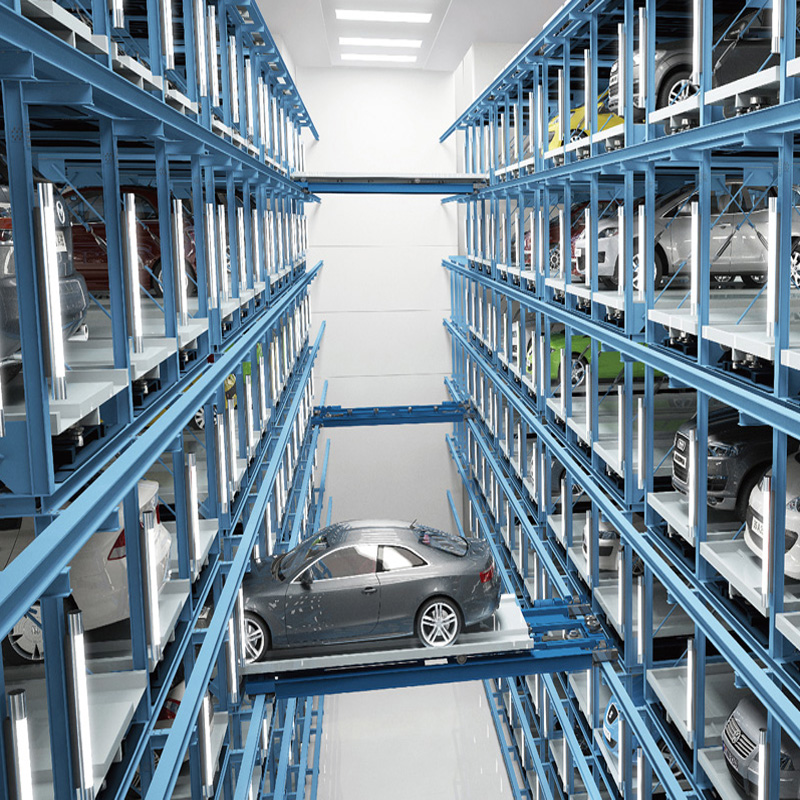

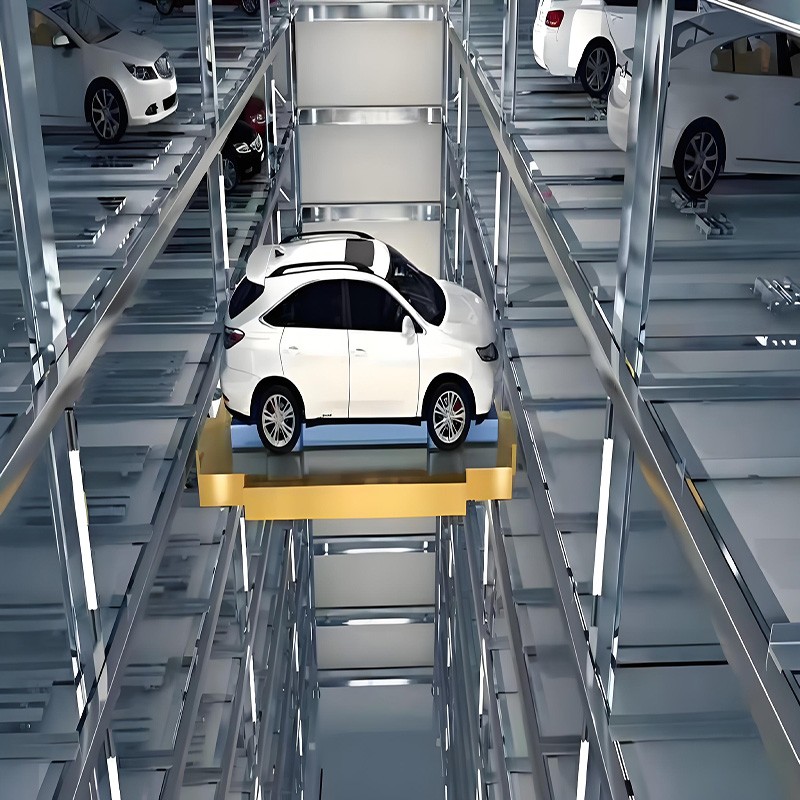

Plane moving parking system refers to mechanical parking equipment that utilises transport trolleys or lifts to move vehicles horizontally on the same level, or panels to slide vehicles laterally for storage and retrieval. Alternatively, it may utilize a combination of transport trolleys and lifts to achieve multi-level horizontal movement for vehicle storage and retrieval.
1. Fully automated parking equipment, robot handling, fast storage/retrieval.
2. No ramps, space-saving, high vehicle density, maximizing landuse.
3. Ideal for large garages with short lanes but many floors.
4. Equipped with safety devices, safe and reliable, preventing accidents.
5. Photoelectric safety detection, controlling vehicle specs and quantity.
6. Generally no forced ventilation orlarge-area lighting, energy-saving.
Suitable for construction in major cities with high population density and high demand for parking.
|

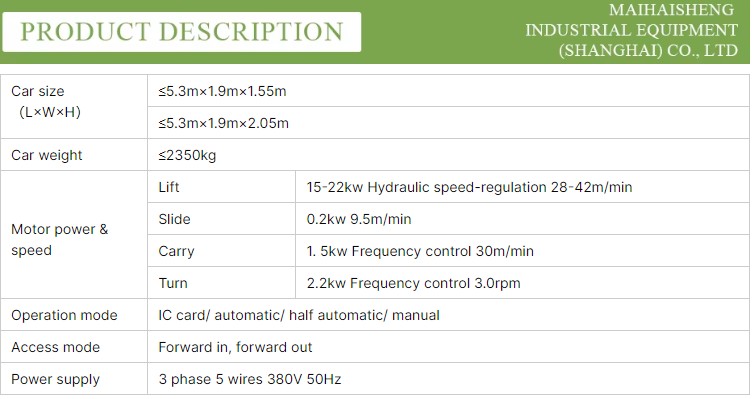

Model Name |
PPY Plane Moving Parking System |
|
Equipment Layers |
2-12 Floors |
|
Vehicle Capacity |
According to Customer Requirements |
|
Vehicle Specifications |
5300x1900x1550/1900 |
|
Vehicle Weight |
2000kg/2350kg |
|
Average Vehicle Access Time |
90 Seconds |
|
Single Warehouse Floor Area |
Width: approx. 19m, determined by lane length |

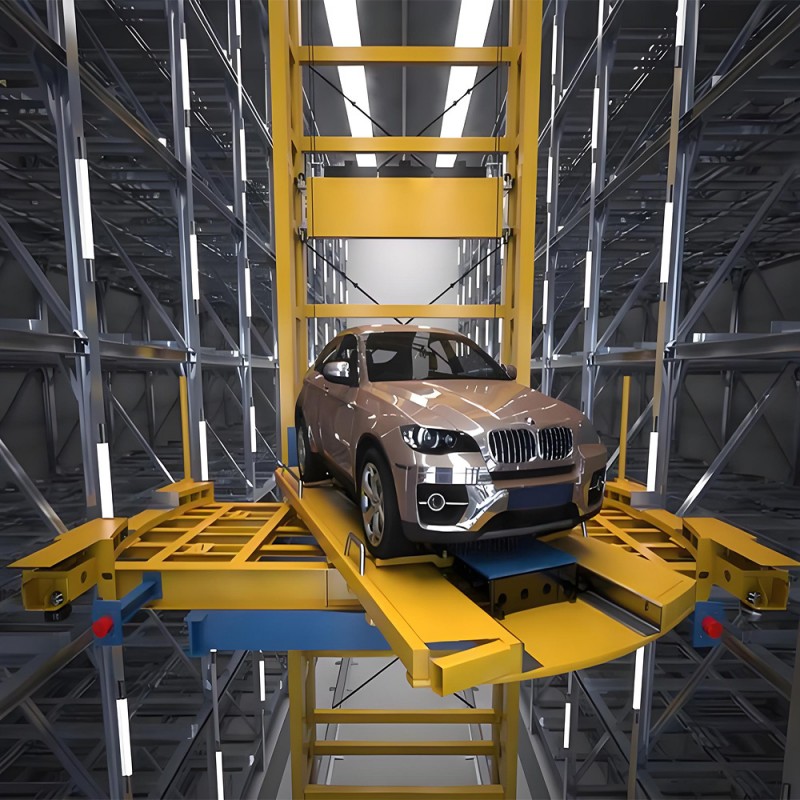

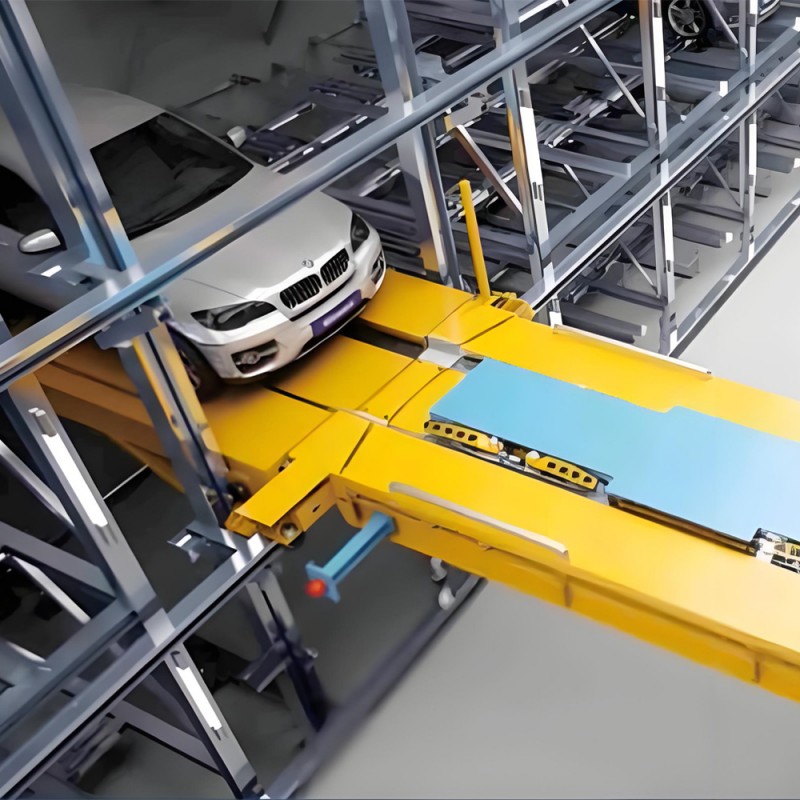

| Handling Method | Comb Teeth Handler/Mechanical Arm Handler |
| Lifting Motor(Kw) | 7.5-22 |
| Traversing Motor(Kw) | 2*1.5 |
| Lifting Speed(m/min) | 30-90 |
| Traversing Speed(m/min) | 45-60 |
| Operation Method | PLC Computer Intelligent Control, Face Recognition |
| Power Supply | Three-Phase Five-Wire System, AC 380V 50Hz |
