The advantages of Vertical Puzzle Parking System
The Maihaisheng vertical puzzle parking system is currently one of the most widely used mechanical parking systems in China, boasting the highest market share. Its core value lies in significantly improving space utilisation at a relatively low cost. The following analysis examines its advantages from six perspectives.
1. High space utilisation rate

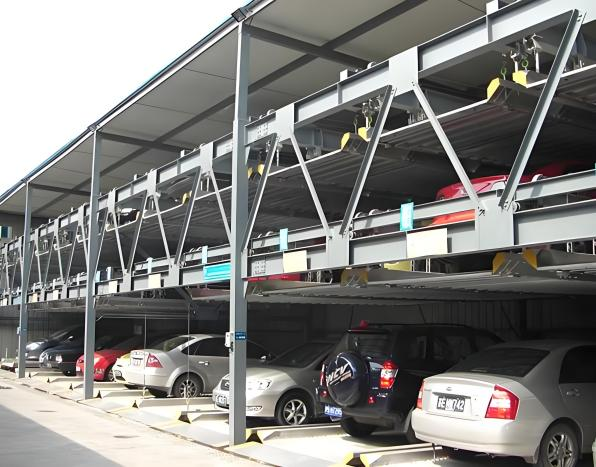

The Maihaisheng Vertical Puzzle Parking System utilises a steel framework to create a multi-storey expansion of two to six levels on top of existing ground-level parking spaces. Each parking space occupies an area of only approximately 2.5 to 3.5 square metres, representing a three- to four-fold increase in space efficiency compared to traditional ground-level parking. Taking a real-world project as an example, a residential estate renovation project in Shanghai installed a 6-storey lift-and-shift system, increasing the number of parking spaces from 80 to 320 and boosting land utilisation by 300%. This feature is particularly crucial for areas with limited land availability, such as city centres and older residential estates, as it enables a significant increase in parking capacity within a limited ground area.
2.Outstanding Cost-Effectiveness
The vertical puzzle parking system offers a clear cost advantage over other types of multi-storey car park equipment.The global average ex-factory price in 2025 is approximately US$2,600 per parking space, which is significantly lower than that of vertical lift systems (US$4,800) and aisle stacking systems (US$6,000). Taking a typical two-storey system as an example, the construction cost per parking space generally ranges from US$1,900 to US$2,500. Furthermore, the equipment features a relatively simple structure, is easy to maintain, and offers controllable operating costs. Daily electricity consumption is limited, and maintenance costs are also relatively moderate.
Maihaisheng Multi-storey Car Parks believes that, from a return on investment perspective, the payback period for lift-and-shift car parks is typically around four to five years, offering good economic benefits. In addition, the equipment is largely modular in design, with most components manufactured to standardised specifications in the factory, allowing for rapid on-site assembly and minimal disruption to existing site operations.
3. High Site Adaptability
The Maihaisheng Vertical Puzzle Parking System can be customised to suit the client’ s site conditions, accommodating designs ranging from 2 to 7 storeys with multiple parking spaces. It can be installed both indoors and outdoors. With a variety of configurations available and the ability to scale up or down, the system can be freely combined and arranged to suit different terrains and spaces, whilst requiring minimal civil engineering work. It can be constructed in open-air settings, in building basements, or designed as a semi-underground structure. With flexible layouts and easy configuration, it offers both single-row and multi-row configurations, enabling the creation of large-scale car parks. This flexibility allows it to adapt to a wide range of scenarios, including residential estates, hospitals, commercial complexes and the refurbishment of older neighbourhoods.
4. Convenient access and high level of automation
Maihaisheng’ s lift-and-translate mechanical car parks utilise PLC computer control, offering simple operation with multiple access methods including button controls and card swiping. The vehicle storage and retrieval process is swift and convenient, whilst the unique cross-beam design ensures unobstructed vehicle entry and exit. Users need only perform simple operations on the control panel for the system to automatically complete the lifting and lateral movement of vehicles. The equipment operates smoothly, with low noise levels, and is environmentally friendly and energy-efficient. Furthermore, the technology is mature and stable, having been validated through years of practical application, and offers high reliability and durability.
5.Safe and Reliable, with Multiple Safety Features
The Maihaisheng vertical puzzle parking system is equipped with multiple safety protection devices, in strict accordance with China’ s national safety standards. These include anti-fall devices, emergency stop buttons, over-travel protection, photoelectric sensors to detect unauthorised entry by personnel or vehicles, and vehicle-stopping devices. The system fully complies with stringent technical requirements regarding steel structure strength, electrical safety and control system reliability. The control cabinet is equipped with overload protection, short-circuit protection and phase sequence protection functions, ensuring that the equipment can stop operating safely even in the event of a power failure. The anti-fall device utilises a design featuring four independent mechanical safety hooks, further ensuring operational safety.
6.Wide Range of Applications
The vertical puzzle parking system is suitable for a variety of settings, including residential estates, hospitals and commercial complexes. Data shows that residential estates account for approximately 38% of its applications, commercial complexes for around 22%, and hospitals for about 15%. It is particularly well-suited to the refurbishment of older residential estates—areas where initial planning failed to provide sufficient parking spaces, resulting in a parking shortfall of over 60%. Maihaisheng’ s vertical lift and lateral shift equipment can efficiently increase the supply of parking spaces within limited areas. In high-traffic locations such as commercial complexes and hospitals, the system can also provide additional parking spaces without occupying excessive ground space, effectively alleviating parking pressure.
Limitations to be aware of
Whilst the vertical puzzle parking system offers significant advantages, Maihaisheng Mechanical Car Parks would like to remind potential users that vertical lift-and-shift car parks also have certain inherent limitations: each unit of equipment requires at least one empty parking space to be reserved as a lifting passage; during peak hours, retrieving a vehicle may require multiple manoeuvres, resulting in relatively limited storage and retrieval efficiency; there are clear restrictions on vehicle dimensions (length, width, height and weight), meaning oversized SUVs or commercial vehicles may not be accommodated; furthermore, users must follow the operating instructions during operation, which places certain demands on driving skills.
Overall, the Maihaisheng vertical puzzle parking system offers high spatial efficiency, cost-effectiveness, adaptability and proven technology as its core competitive advantages, making it one of the preferred solutions for addressing urban parking challenges, particularly the need to expand capacity in existing spaces such as older residential estates and commercial centres.
