Multilevel Vertical Stacker and Shuttle Automated Parking System

The Aisle-Stacking Parking System is a fully automated, space-saving parking solution designed for large-scale parking facilities and custom projects. By integrating robotic handling with horizontal and vertical movement, this smart parking system maximizes both floor area and height utilization, effectively solving parking shortages in urban environments.

The system accommodates vehicles up to 5300 × 1900 × 1550/2000 mm (L × W × H), covering most standard sedans and SUVs. As a customizable solution, it offers flexible adjustments in parking capacity, layout configuration, and floor height to suit irregular sites and specific project needs.

Its core advantage lies in robotic handling technology, which ensures precise, efficient, and damage-free vehicle transfer. The system also features remote code control for real-time monitoring and centralized management, significantly reducing manual intervention and improving operational efficiency.

Ideal for high-traffic public parking lots and custom parking projects, the Aisle-Stacking Parking System delivers intelligent, reliable, and future-proof parking solutions that align with modern smart city development.

    Contact us
    Product Introduction
    Features
    Application
    Parameters
    Product Details

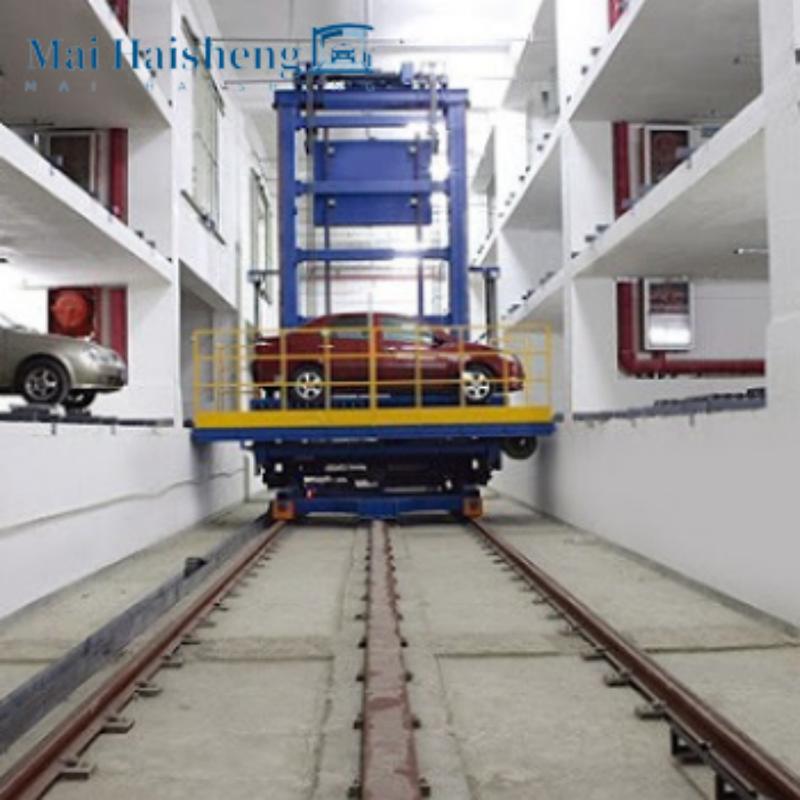

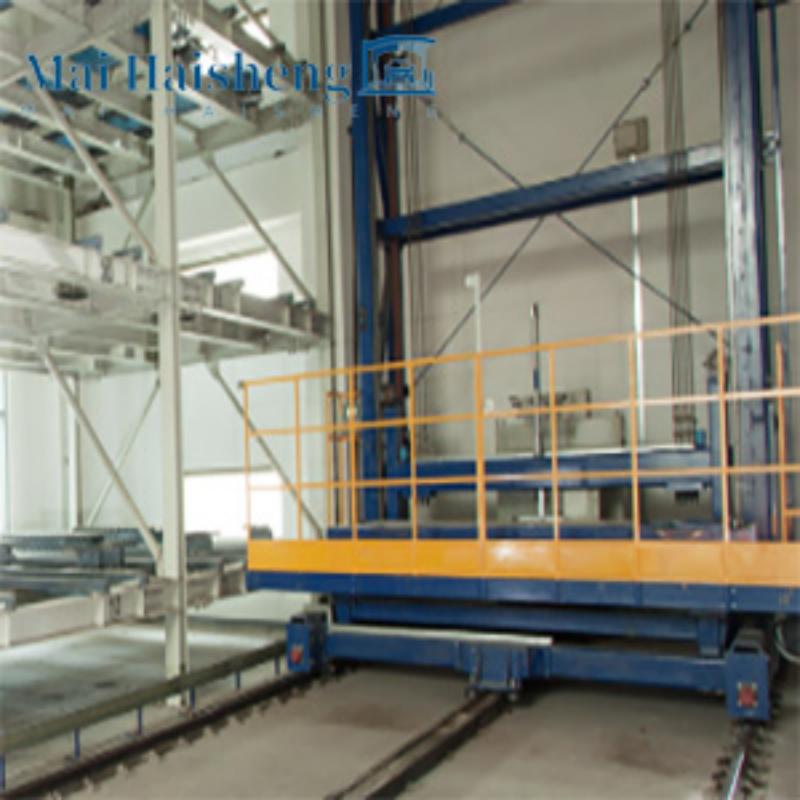

    By employing stacker cranes that move in both horizontal and vertical directions, this system efficiently accesses and retrieves vehicles using integrated traverse mechanisms. Its adaptable design suits a wide range of site conditions and height constraints, making it ideal for underground or above‑ground parking facilities.

    1.Fully automatic,intelligent parking equipment;robot handling;fast parking/retrieval speed

    2.Each system has a stacker (horizontal movementon rails)with a lifting platform forvertical movement

    3.Wide site applicability; suits 2-7 floor above/below-ground garages

    4.Higher cost-performance than planar mobile garages

    Suitable for construction in major cities with high population density and high demand for parking.

    Model Name

    PCS Aisle Stacking Type Parking System

    Equipment Layers

    2-7 Floors

    Vehicle Capacity

    Per Customer Requirements

    Vehicle Specifications(mm)

    5300x1900x1550/2000

    Vehicle Weight(kg)

    2000kg/2350

    Average Vehicle Access Time

    90 Seconds

    Floor Area of Single Set of Garage

    Width: approx. 19m, determined by aisle length

    Handling Method

    Comb Teeth Handler/Mechanical Arm Handler

    Lifting Motor(KW)

    7.5-15

    Traversing Motor(KW)

    5.5

    Lifting Speed(m/min)

    30-60

    Traversing Speed(m/min)

    50-60

    Operation Method

    PLC Computer Intelligent Control, Face Recognition

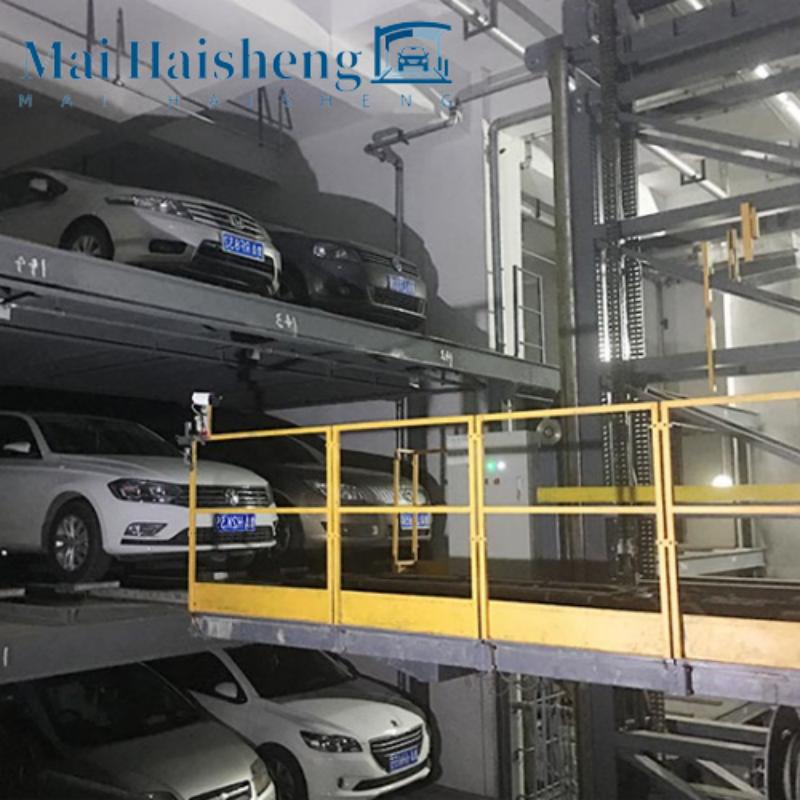

    PCS Aisle Stacking Type Parking System (1)PCS Aisle Stacking Type Parking System (1)PCS Aisle Stacking Type Parking System (2)PCS Aisle Stacking Type Parking System (2)PCS Aisle Stacking Type Parking System (3)PCS Aisle Stacking Type Parking System (4)
