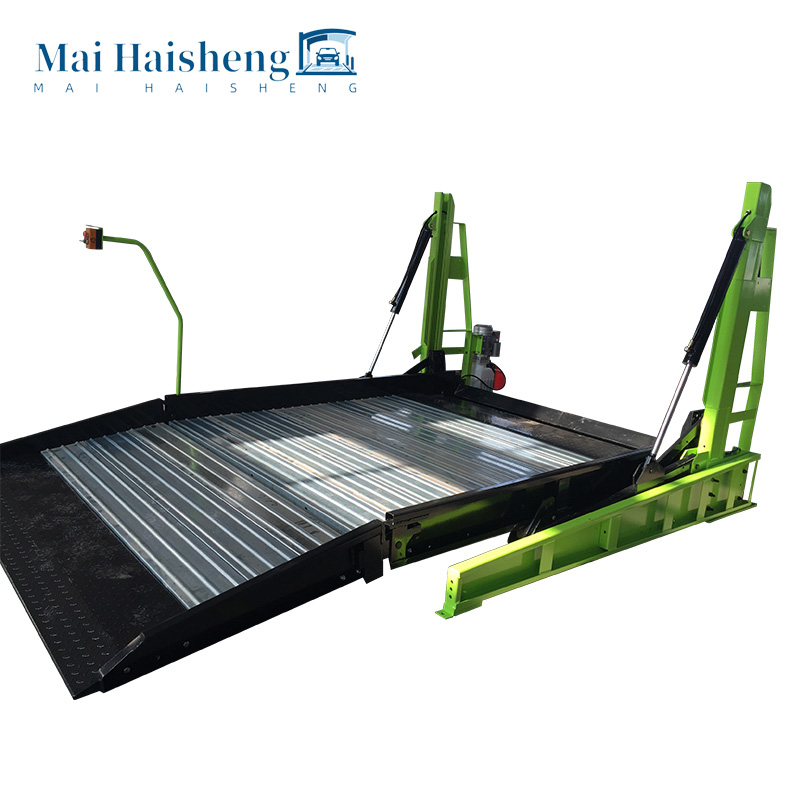

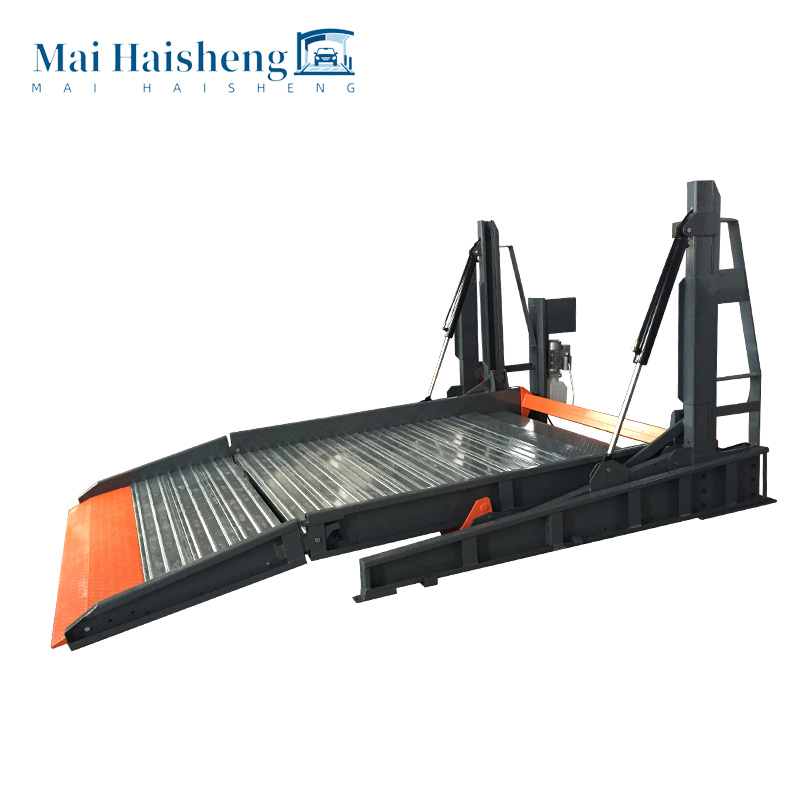

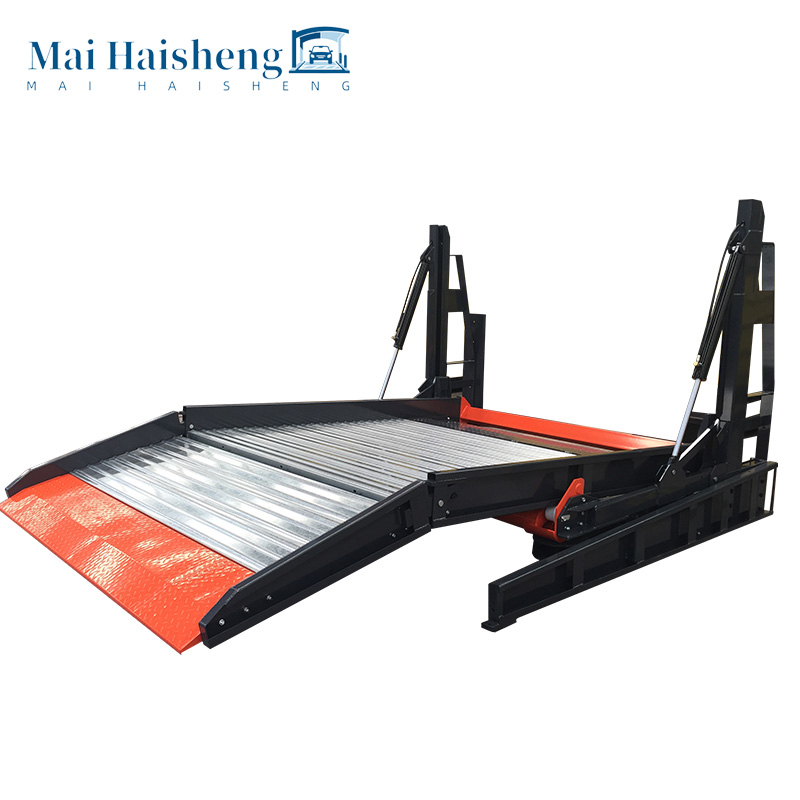

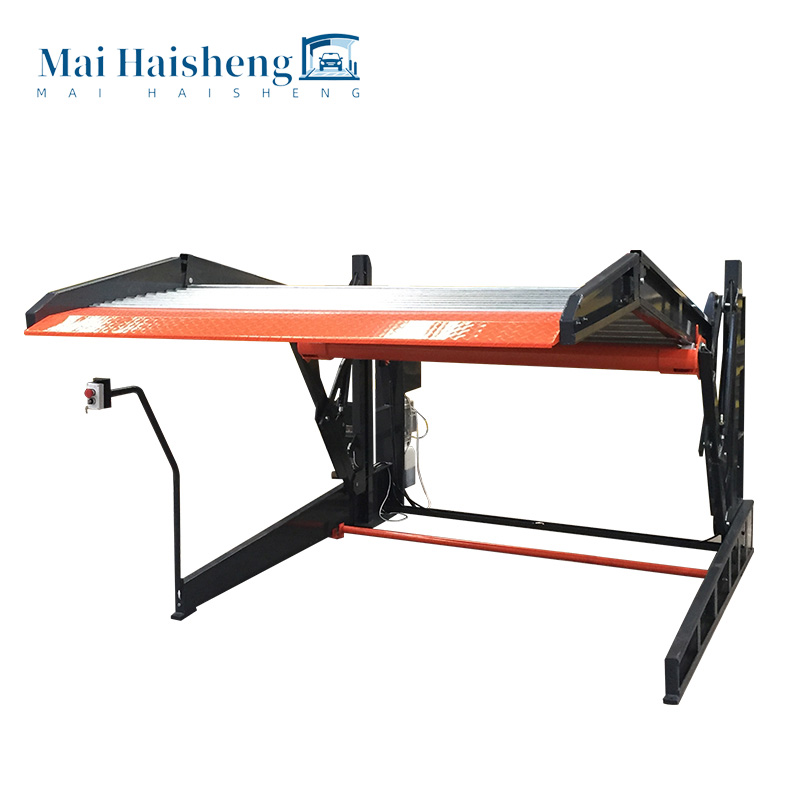

Low Headroom Spaces Tilting Type Parking System

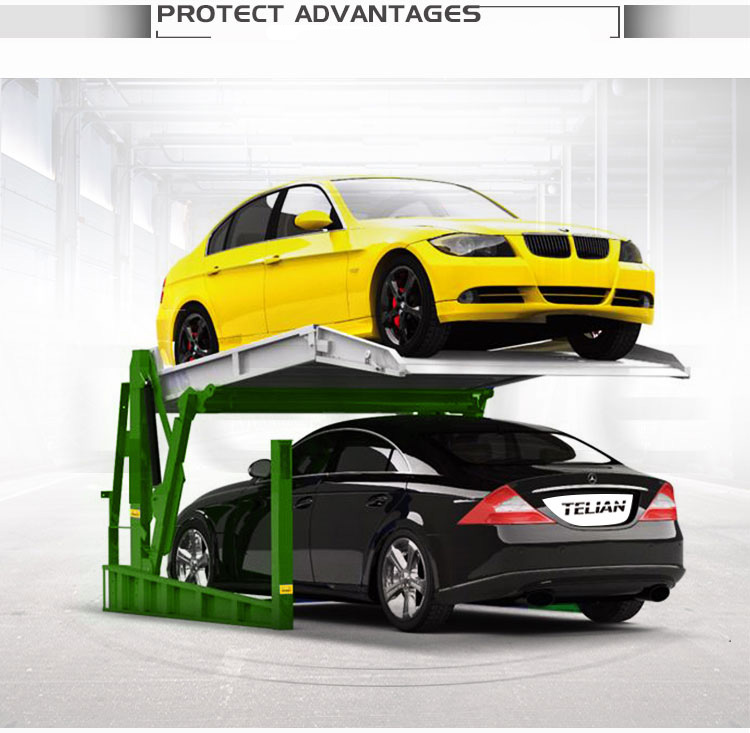

PJS-TT car parking lift has two parking lot totally. It can park two cars.The lower level car can come in or come out at liberty.,If you want to pick up the upper car, should drive out the lower car firstly.

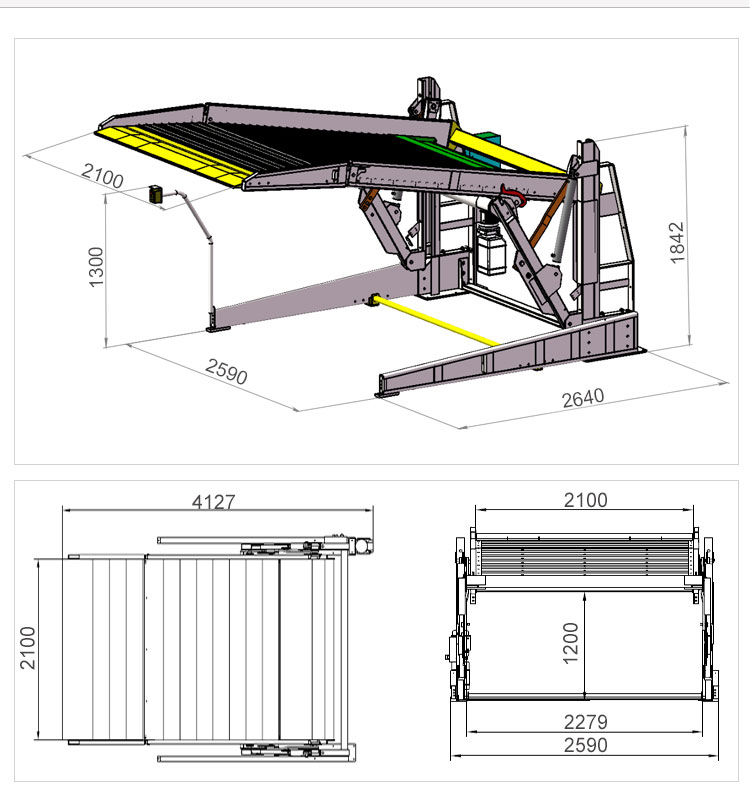

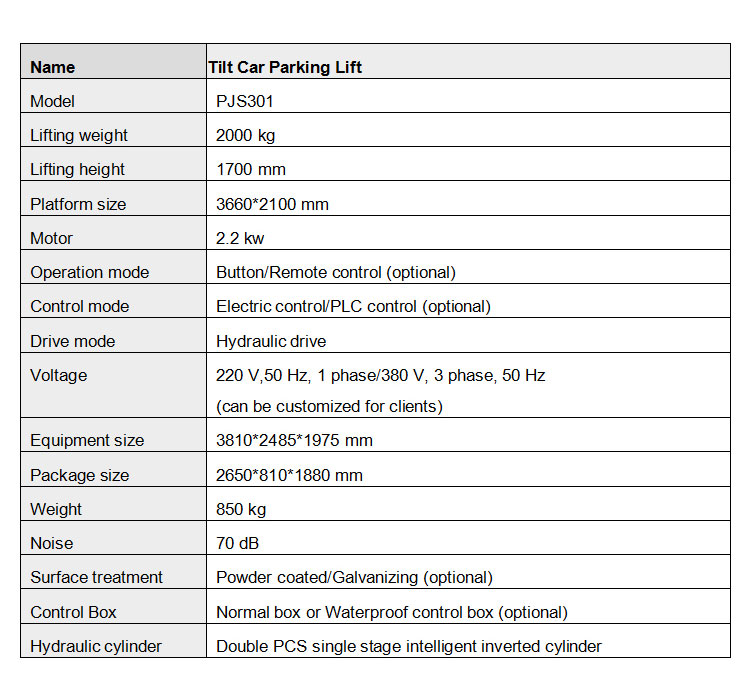

Tilt car parking lift’ s lifting height is 1700mm, lifting weight is 2000kgs. It is suitable to park saloon car.
Tilt car parking lift can make the best use of the space because its platform is tilt.The net height of tilt car parking lift not lower than 3100mm or 2900mm.
We can also customize the lifts according to customers’ requirement.
1. Exquisite styling and durable construction ensure high practicality for domestic use.
2. Hydraulic cylinder lifting with hydraulic drive guarantees balanced lifting and lowering at both ends for smooth operation.
3. Safe and reliable with low noise, energy-saving and environmentally friendly.
4. Fully enclosed vehicle platform design prevents oil leakage.
5. Rapid lifting time enables swift vehicle retrieval.
6. Electrical and drive components feature waterproof treatment.

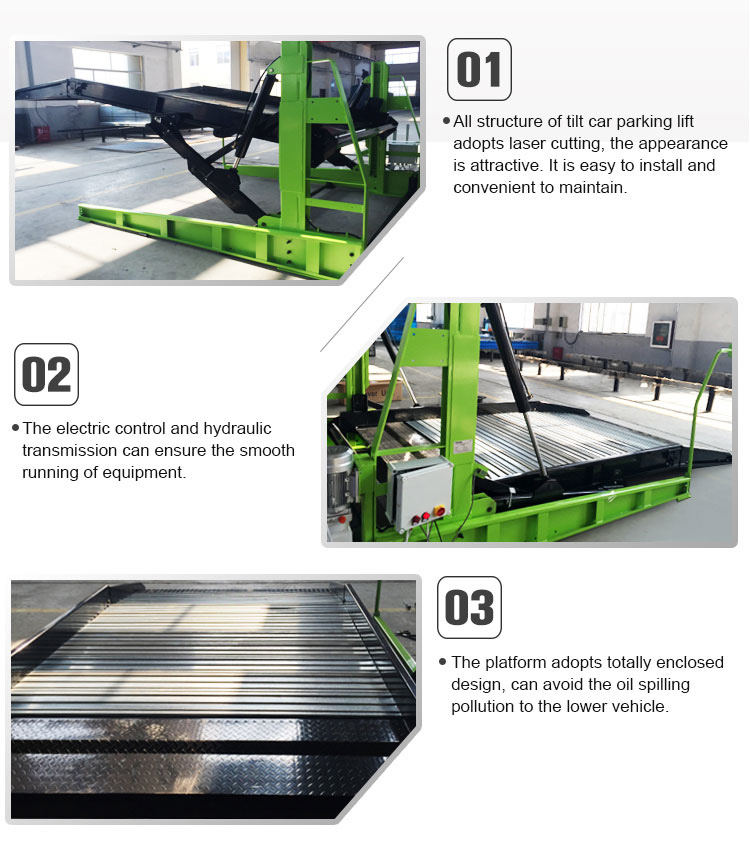

7. Meticulously crafted with a simple, compact and practical structure. Easily relocatable with straightforward installation requiring minimal time, no welding or cutting, and low structural requirements.

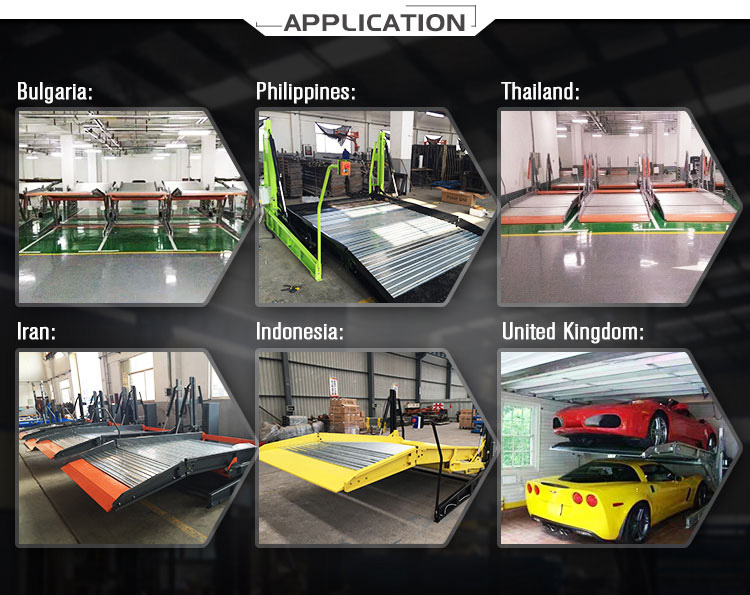

PJS-TT car parking lift is widely used in banks, hospitals, hotels, supermarkets, entertainment places, office enterprises, public institutions and residential areas to set up a parking lot.
|

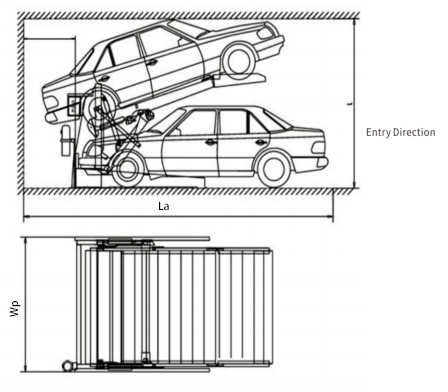

Vehicle model code |
MZ |
LZ |
|
|
Wp×La(mm) |
2500×5800 |
2600×6000 |
|
|
Applicable Vehicle Parameters |
Length(mm) |
≤5000 |
≤5300 |
|
Width(mm) |
≤1850 |
≤1950 |
|
|
Height(mm) |
≤1550 |
≤1550 |
|
|
Weight(Kg) |
≤2000 |
≤2000 |
|
