Intelligent Automated Plane-Moving Parking System

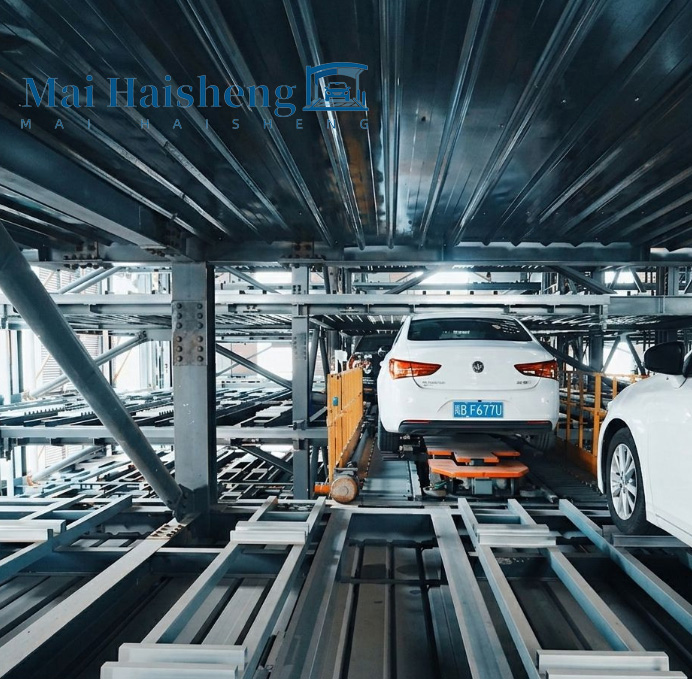

A plane-type moving parking system is a category of mechanical parking equipment that employs transport trolleys or lifts to move vehicles horizontally within the same level, or utilises sliding panels to shift vehicles laterally for storage and retrieval. In addition, it may integrate both transport trolleys and lifts to enable multi-level horizontal movement, thereby facilitating vehicle storage and retrieval across different tiers.
1.Fully automated parking equipment, robot handling,fast storage/retrieval.
2.No ramps,space-saving, high vehicle density, maximizing landuse.
3.Ideal for large garageswith short lanes but manyfloors.
4.Equipped with safety devices, safe and reliable, preventing accidents.
5.Photoelectric safety detection, controllingvehicle specs andquantity.
6.Generally no forced ventilation orlarge-area lighting, energy-saving.
Ideally suited for deployment in densely populated major cities where parking demand is high.
|
Model Name |
PPY Plane Moving Parking System |
|
Equipment Layers |
2-12 Floors |
|
Vehicle Capacity |
According to Customer Requirements |
|
Vehicle Specifications |
5300x1900x1550/1900 |
|
Vehicle Weight |
2000kg/2350kg |
|
Average Vehicle Access Time |
90 Seconds |
|
Single Warehouse Floor Area |
Width: approx. 19m, determined by lane length |
|
Handling Method |
Comb Teeth Handler/Mechanical Arm Handler |
|
Lifting Motor(Kw) |
7.5-22 |
|
Traversing Motor(Kw) |
2*1.5 |
|
Lifting Speed(m/min) |
30-90 |
|
Traversing Speed(m/min) |
45-60 |
|
Operation Method |
PLC Computer Intelligent Control, Face Recognition |
|
Power Supply |
Three-Phase Five-Wire System, AC 380V 50Hz |
