CE Certification Parking Hoist Vertical Car Parking Garage Simple Two Post Car Stacker Hydraulic 2 Post 2 Level Car Parking Lift

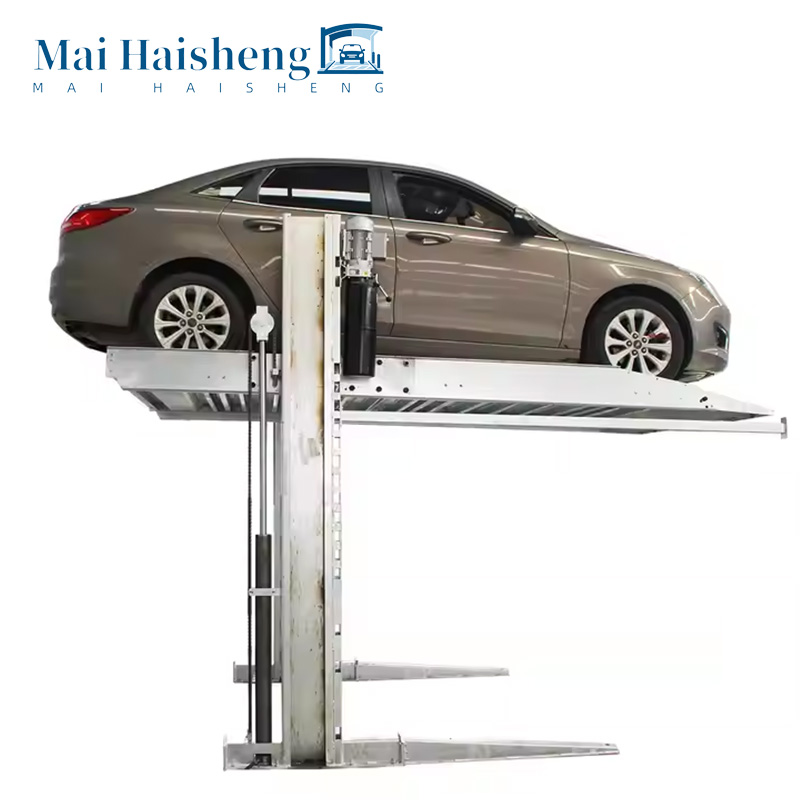

The PJS-2 Garage represents a new generation of multi-level parking systems, offering intelligent parking solutions for vehicle owners. This simple lift-type multi-level parking equipment enables the parking of vehicles on two tiers within a single existing parking space. Featuring straightforward structural design and control systems, it is easy to install, highly safe in operation, exhibits low failure rates, requires minimal maintenance costs, and imposes few structural or site requirements.
This equipment boasts a maximum lifting height of 2100 mm, with maximum load capacities of 2300 kilograms, 2000 kilograms, and 3200 kilograms respectively.
Suitable for parking SUVs and sedan cars, the equipment dimensions and load capacities can be customised to meet client requirements.
Its user-friendly and reliable operation makes it suitable for use in residential homes or villa complexes. It stands as a popular choice among numerous customers for multi-storey car parks. As our flagship product, it enjoys strong popularity and is exported to Southeast Asia, Europe, and worldwide.
1.Fit for al the places or families, sapce saving.
2.Hydraulic drive, running smoothly, low noise.

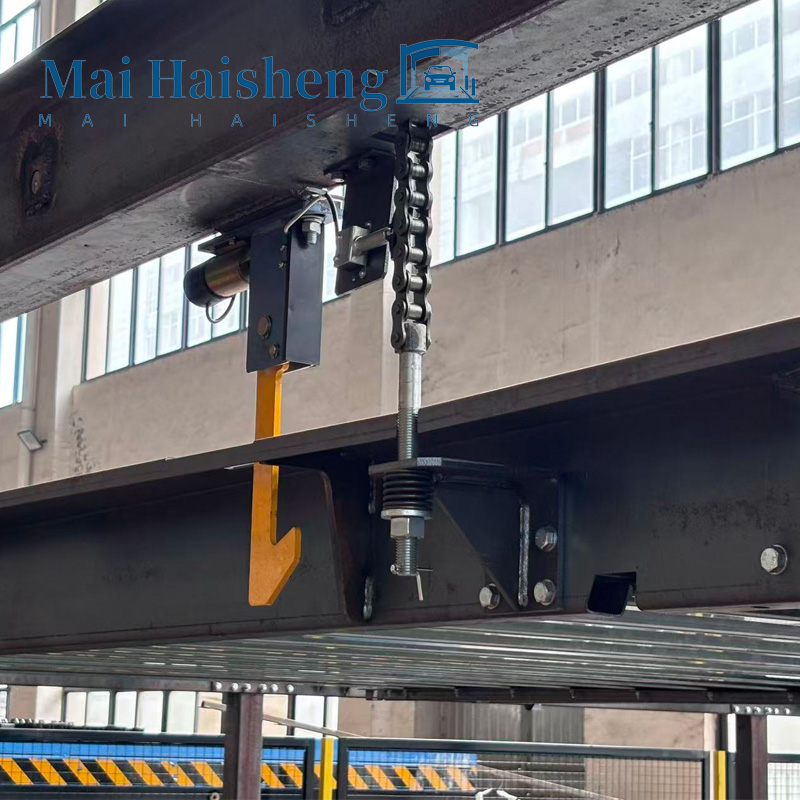

3.chains running steadily
This product is widely used in banks, hospitals, hotels, supermarkets, entertainment venues, offices, public institutions, and residential areas.
|
Code Name |
Large vehicle |
Extra-large vehicle |
|
|
Applicable Vehicle Parameters |
Length(mm) |
≤5000 |
≤5200 |
|
Width(mm) |
≤1850 |
≤1950 |
|
|
Height(mm) |
≤2000 |
≤1550 |
|
|
Weight(Kg) |
≤2000 |
≤2300 |
|
|

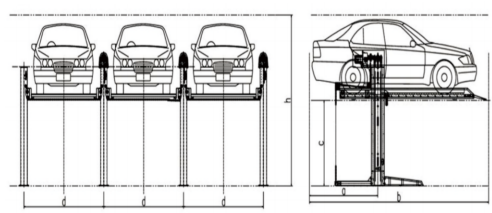

Garage capacity |
a(mm) |
2100 |
2250 |
|
b(mm) |
5200 |
5500 |
|
|
c(mm) |
2100 |
2100 |
|
|
d(mm) |
2450 |
2550 |
|
|
h(mm) |
3600/4000 |
3600/4000 |
