Automated Mechanical 2-6 Levels Plane Moving Robotic Parking System Parking Equipment

The plane moving parking system is a high-quality, fully automated parking solution ideally suited to high-traffic commercial environments—such as shopping centres and hospitals—where space utilisation is of paramount importance. As a smart car park, it features rapid vehicle retrieval and return, eliminates the need for ramps, and boasts a space-saving design, effectively alleviating parking congestion.

The system is powered by a three-phase five-wire system (AC 380V 50Hz) and supports configurations ranging from 2 to 12 levels, adapting to a variety of site constraints. It is equipped with comprehensive safety mechanisms to ensure the safe and reliable operation of both vehicles and users. The product has obtained CE certification and complies with stringent international quality and safety standards.

The equipment can be customised to meet specific project requirements, delivering a seamless and efficient parking experience. Its ramp-free and intelligent design maximises the use of vertical space, making it an ideal choice for commercial spaces with limited land resources.

Product Introduction

Features

Application

Parameters

Product Details

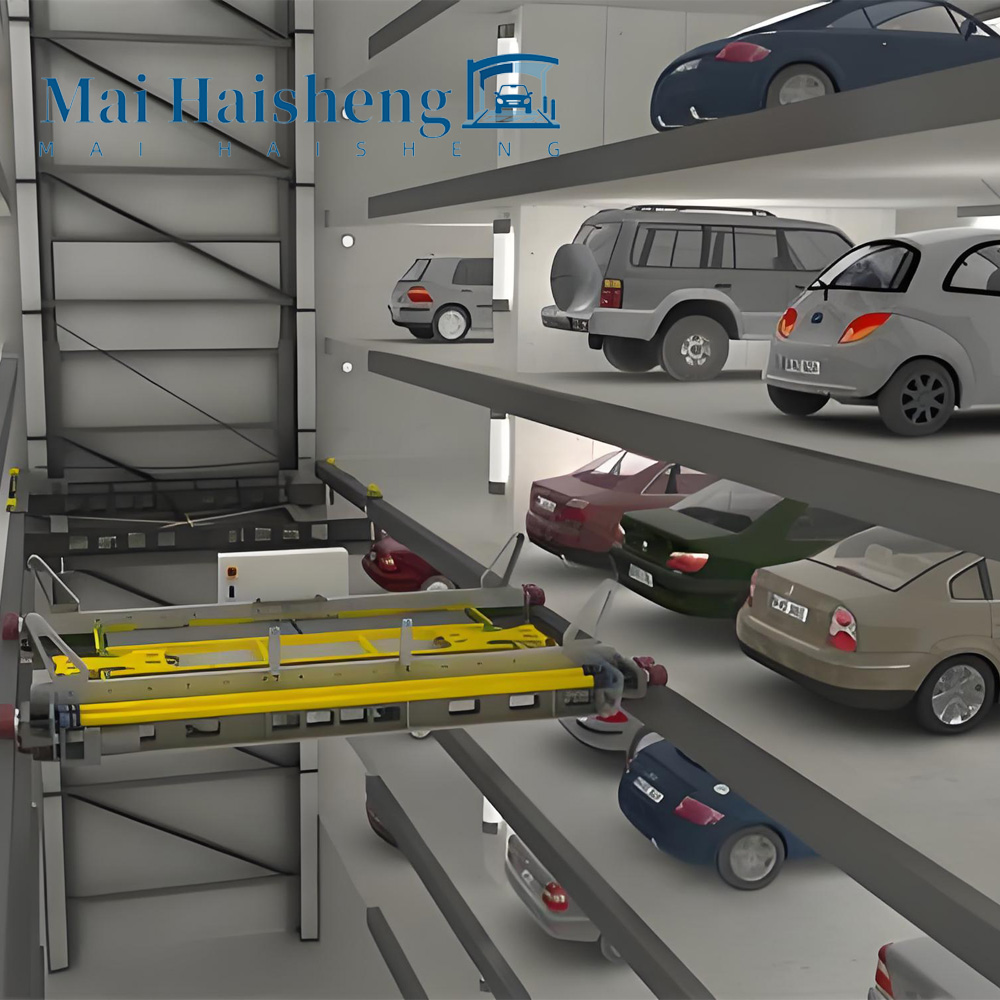

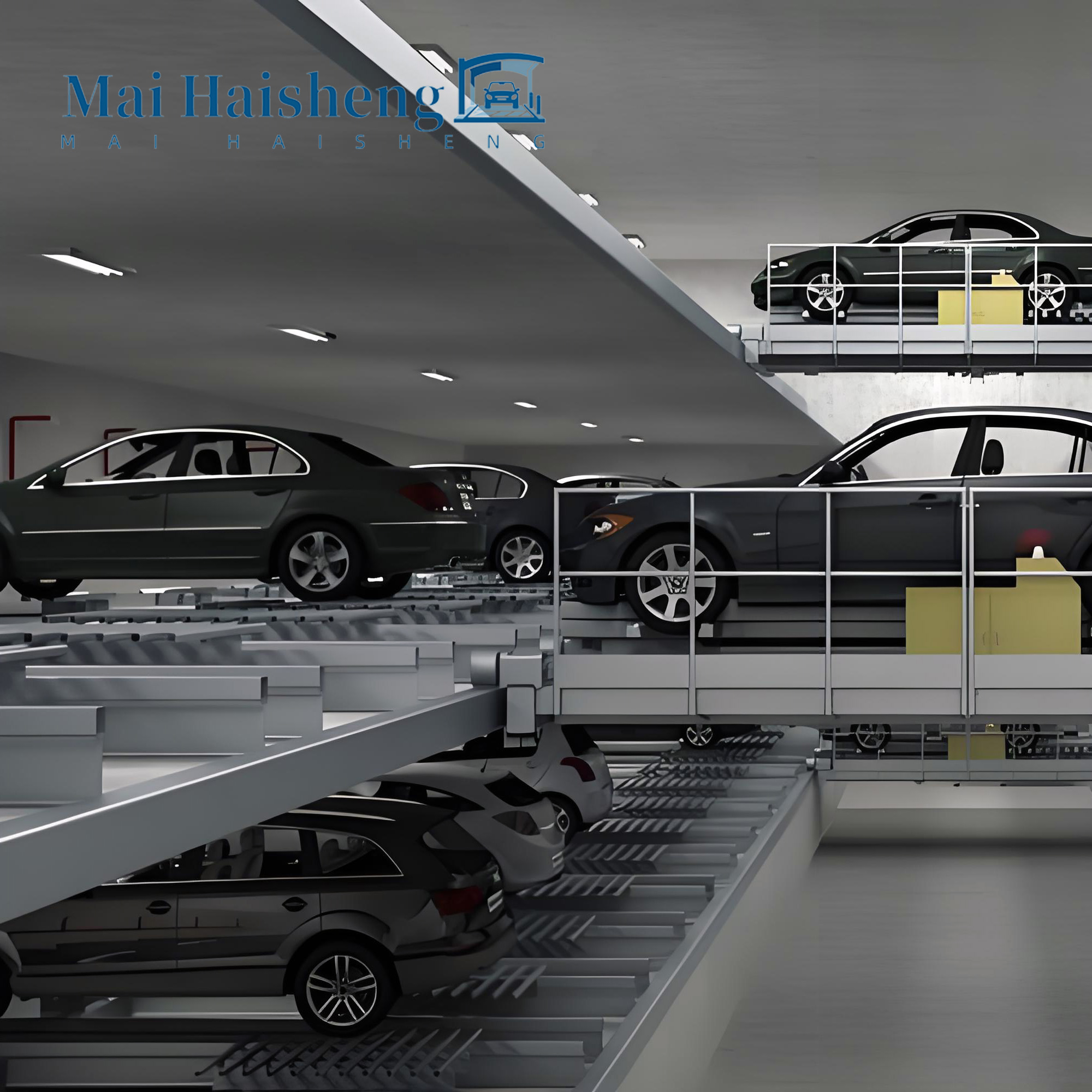

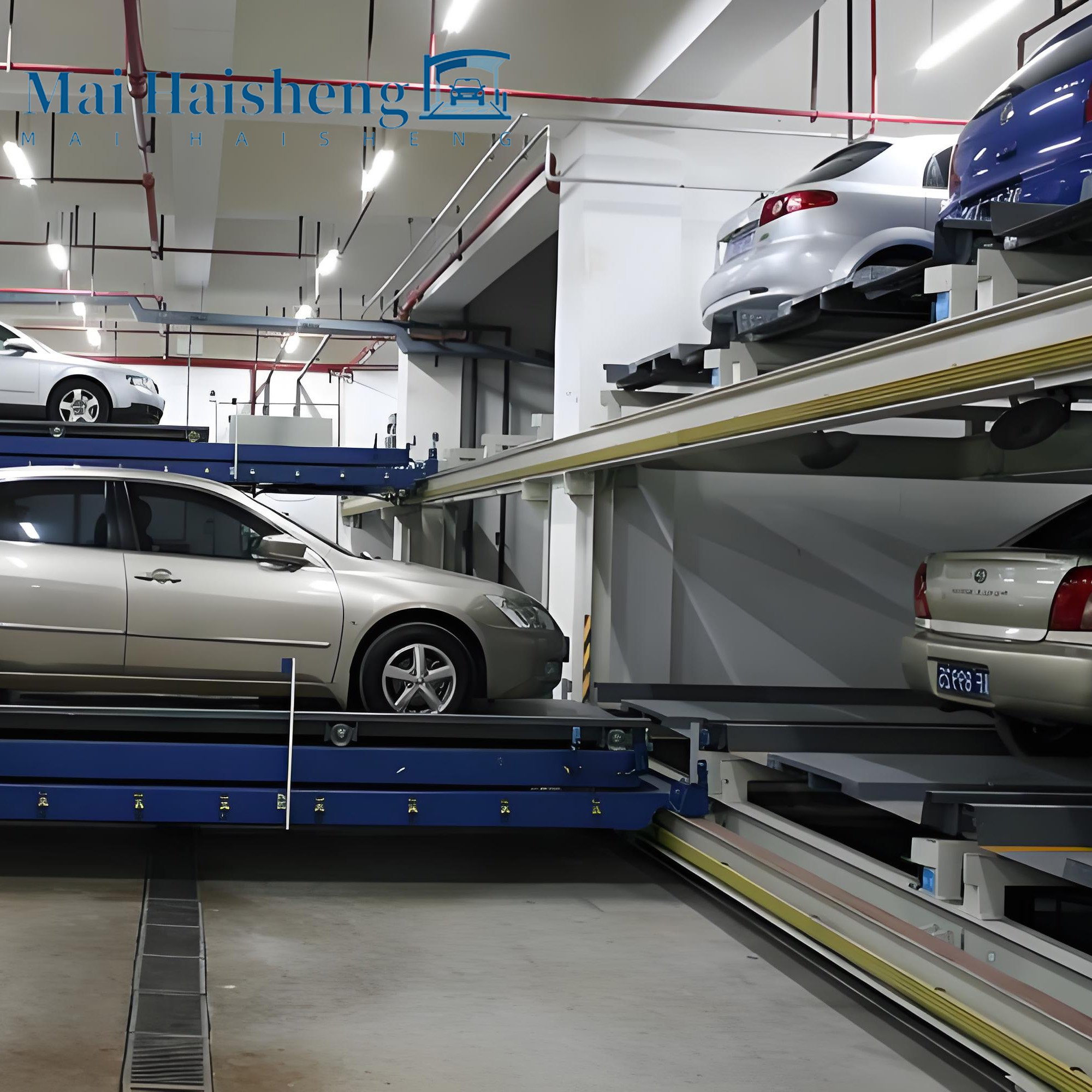

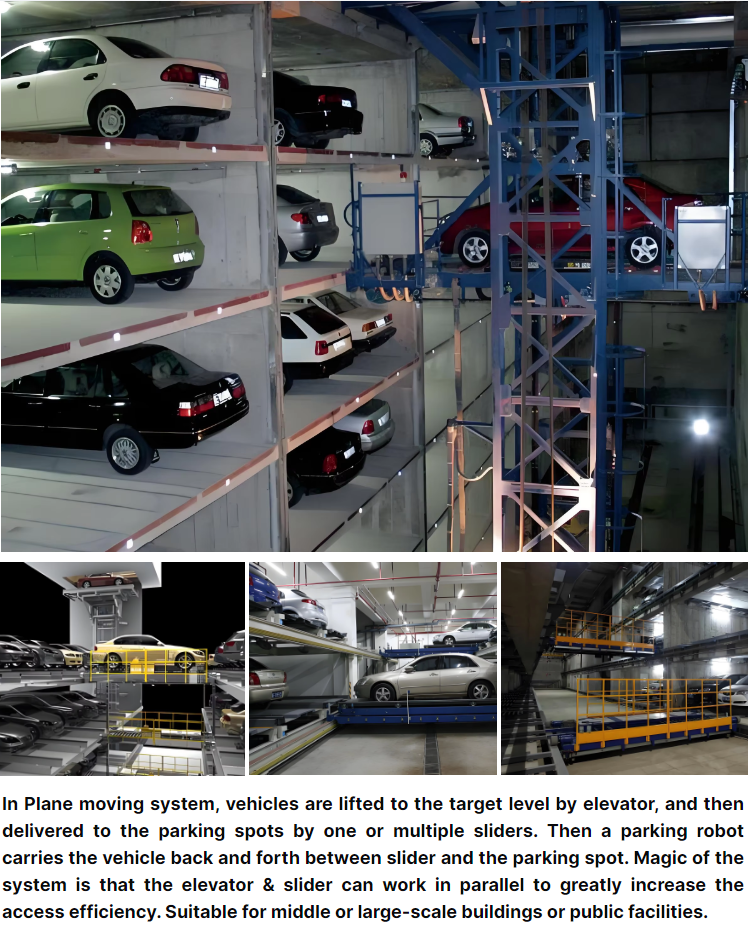

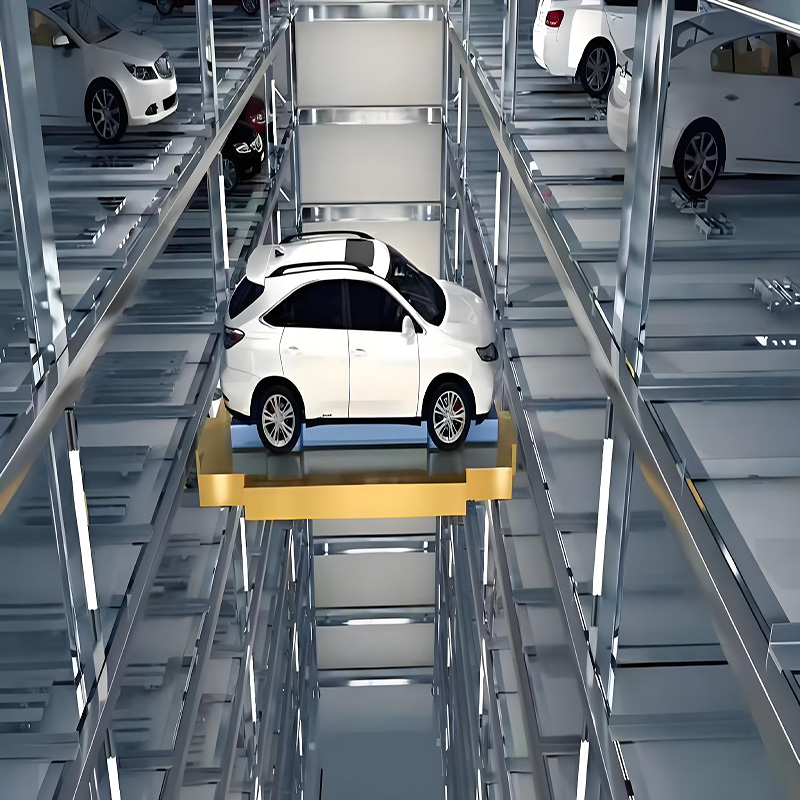

Plane moving parking system refers to mechanical parking equipment that utilises transport trolleys or lifts to move vehicles horizontally on the same level, or panels to slide vehicles laterally for storage and retrieval. Alternatively, it may utilize a combination of transport trolleys and lifts to achieve multi-level horizontal movement for vehicle storage and retrieval.

1.Fully automated parking equipment,robot handling,fast storage/retrieval.

2.No ramps,space-saving,high vehicle density,maximizing landuse.

3.Ideal for large garageswith short lanes but manyfloors.

4.Equipped with safety devices,safe and reliable,preventing accidents.

5.Photoelectric safety detection,controllingvehicle specs andquantity.

6.Generally no forced ventilation orlarge-area lighting,energy-saving.

Suitable for construction in major cities with high population density and high demand for parking.

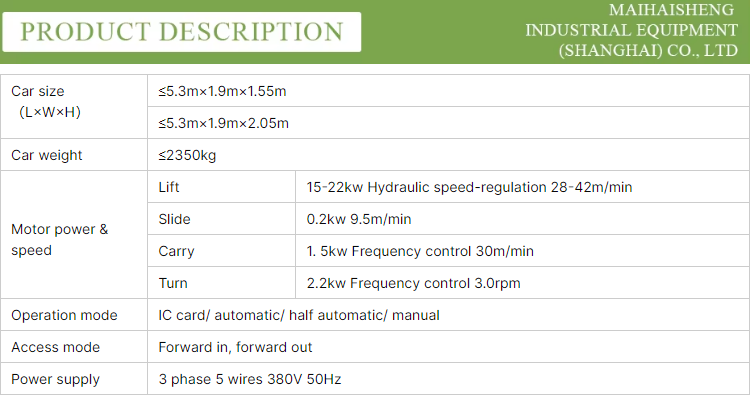

Model Name	PPY Plane Moving Parking System
Equipment Layers	2-12 Floors
Vehicle Capacity	According to Customer Requirements
Vehicle Specifications	5300x1900x1550/1900
Vehicle Weight	2000kg/2350kg
Average Vehicle Access Time	90 Seconds
Single Warehouse Floor Area	Width: approx. 19m, determined by lane length

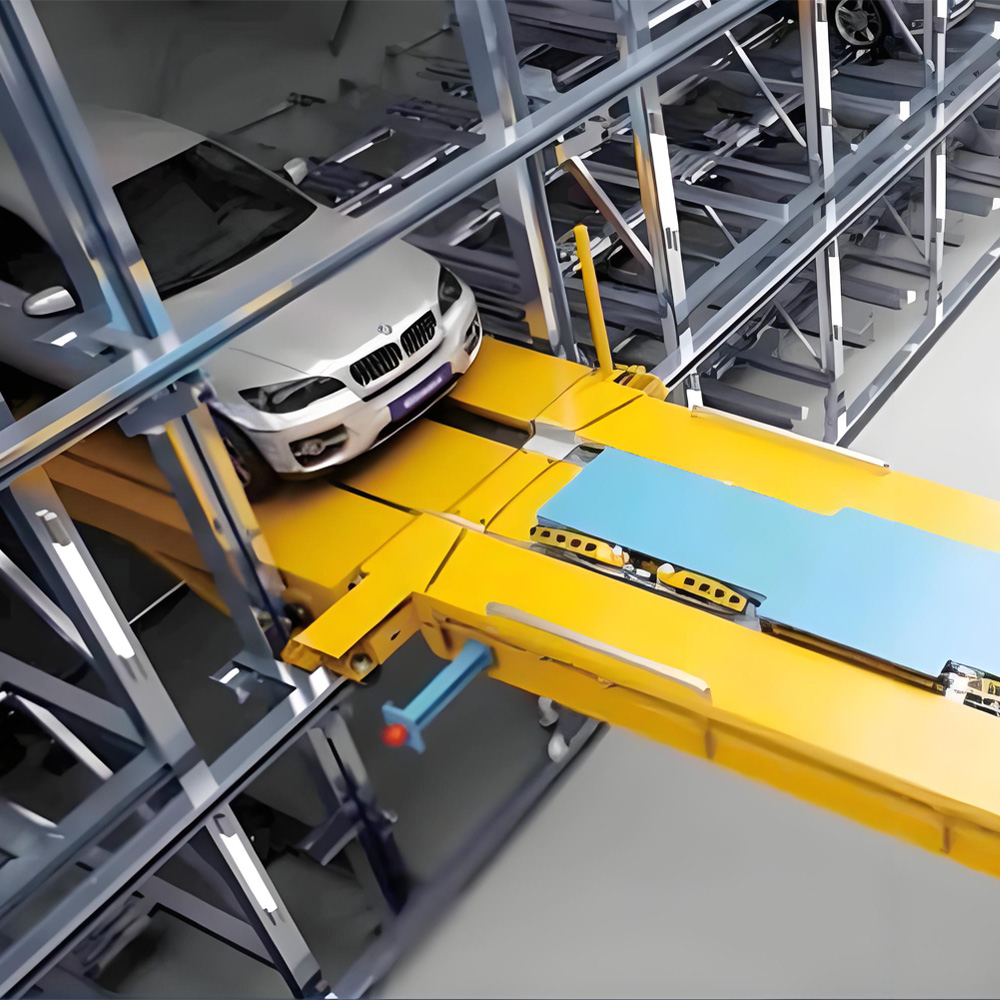

Handling Method	Comb Teeth Handler/Mechanical Arm Handler
Lifting Motor(Kw)	7.5-22
Traversing Motor(Kw)	2*1.5
Lifting Speed(m/min)	30-90
Traversing Speed(m/min)	45-60
Operation Method	PLC Computer Intelligent Control, Face Recognition
Power Supply	Three-Phase Five-Wire System, AC 380V 50Hz
